Communication options SolarEdge with SetApp

RS485 Connection:

• Yes with 2 RS485 ports for Master-slave configuration

• RS485 is used for the connection of multiple SolarEdge devices on the same bus in a master-slave configuration. RS485 can also be used as an interface to external devices, such as meters and third party data loggers.

• RS485-1: Enables the connection of multiple devices (inverters/Commercial Gateway) over the same bus, such that connecting only one device to the Internet is sufficient to provide communication services for all the devices on the bus.

• RS485-2: Enables the connection of multiple SolarEdge devices and of nonSolarEdge devices over the same bus.

Ethernet Connection:

• Yes

• Direct connection to the router, the maximum distance between the inverter and the router – 100 m

WLAN connection:

• Yes,

• wifi card built-in but need to order an antenna kit separately.

Cellular (GSM, CDMA) connection:

• Yes,

• Need to order GSM/CDMA Plug-in separately

Zigbee connection:

• Yes,

• In 3-phases SetApp inverters, ZigBee card built-in but need to order an antenna kit separately.

• In 1-phase SetApp inverters, both ZigBee card and an antenna kit must be ordered.

Note:

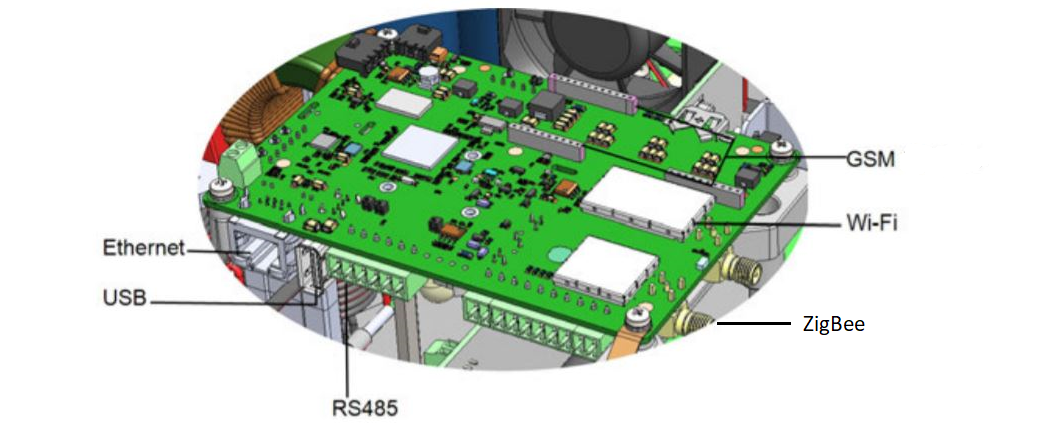

• Communication built-in board 1-phase inverter setapp

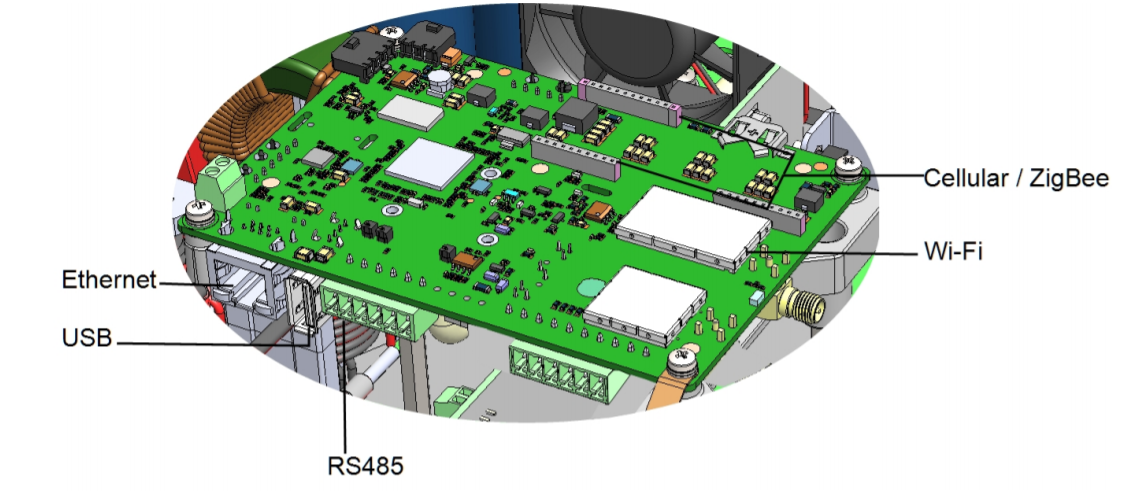

• Communication built-in board 3-phases inverter setapp

• Further information check Solaredge website
