Deye HV Battery guide

Created by Daniel Kovacs, Modified on Fri, 19 Jan at 9:59 AM by Daniel Kovacs

Applicable inverters:

  • SUN-6/8/10/12/15/20/25/30/40/50K-SUNSG01HP3


Hybrid system components:

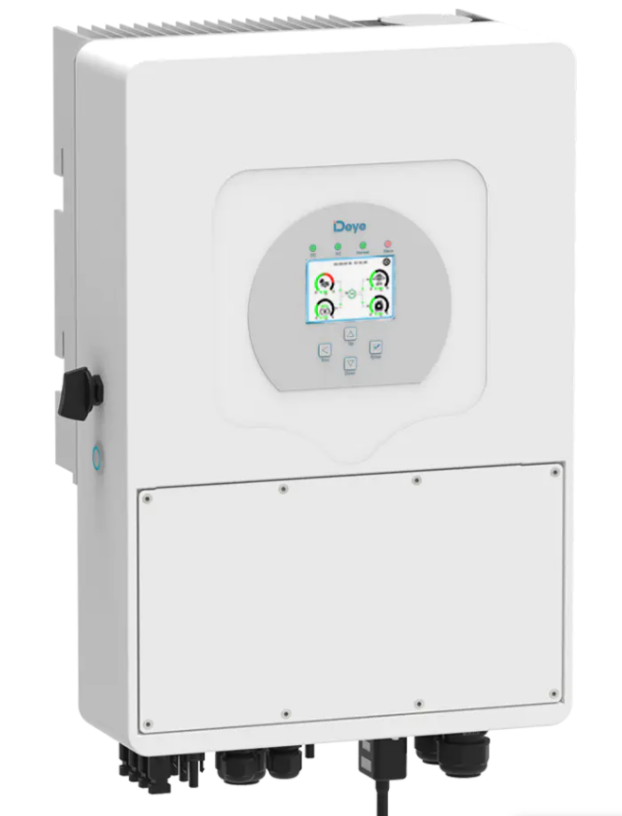

  • SUN Inverter
    • CTs and Wifi dongle are included
    • Works only with High Voltage batteries


  • Deye BOS battery
    • Battery
      • BOS-GM5.1 (min 4 PC.  max 12 pc.)
    • BMS
      • Control Boxes HVB750V/100A-EU
    • Cables
      • Positive cable to the inverter 260-017
      • Negative cable to the inverter 260-016
      • Communication cable to inverter 260-015
    • Accessories
      • BOS-G - 3U-HRACK
  • Deye GB battery
    • Battery
      • 4.09kWh GB-LM4.0
    • BMS
      • Control Box GB-LBS
    • Cables
      • All cables are included with the Control Box
  • Meter

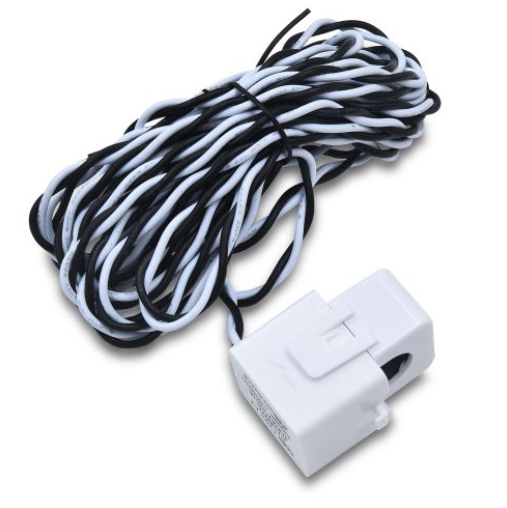

    • CTs (included for the inverter)

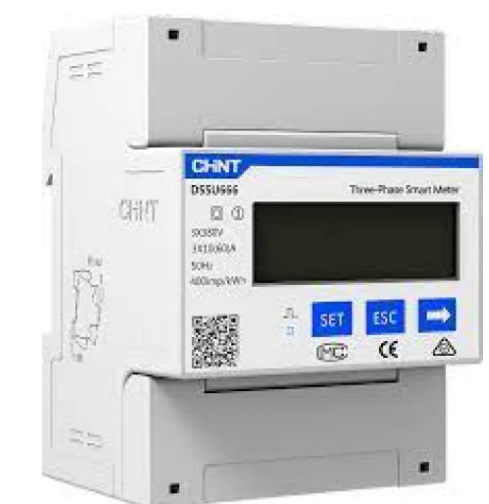

    • DTSU-666 Up to 80 A (IN-Line)

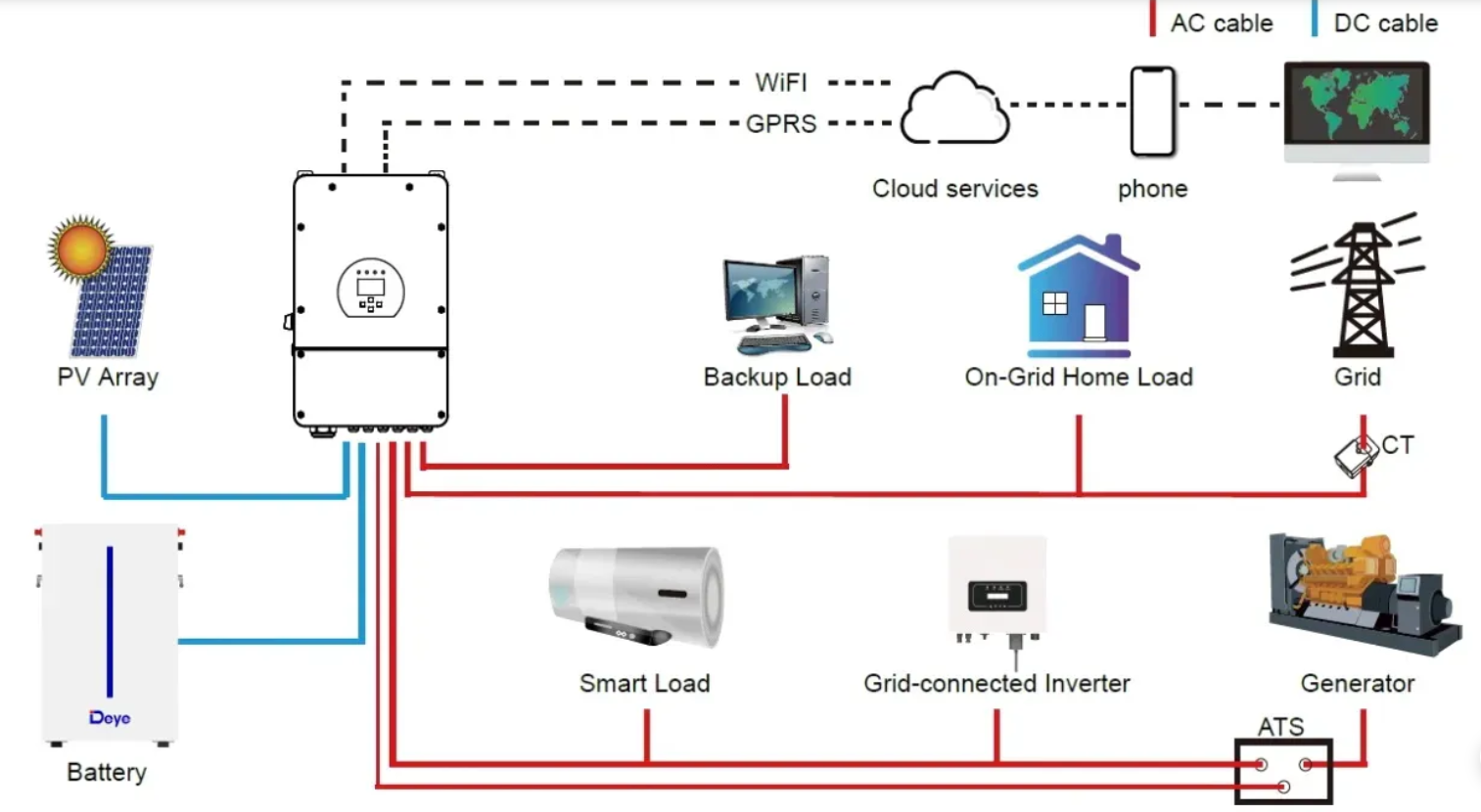

System schematic diagrams:
