Communication options for Huawei Inverters

For:

- SUN2000L-2-5KTL

- SUN2000-3-10KTL-M0

- SUN2000-12-20KTL-M0
- SUN2000-30/36/40KTL-M3

- SUN2000-33KTL-A/ 36KTL

- SUN2000-50/60KTL-M0

RS485 Connection:

• YES

• 2 RS485 ports for master slave and smart meter connection

Ethernet Connection:

• No

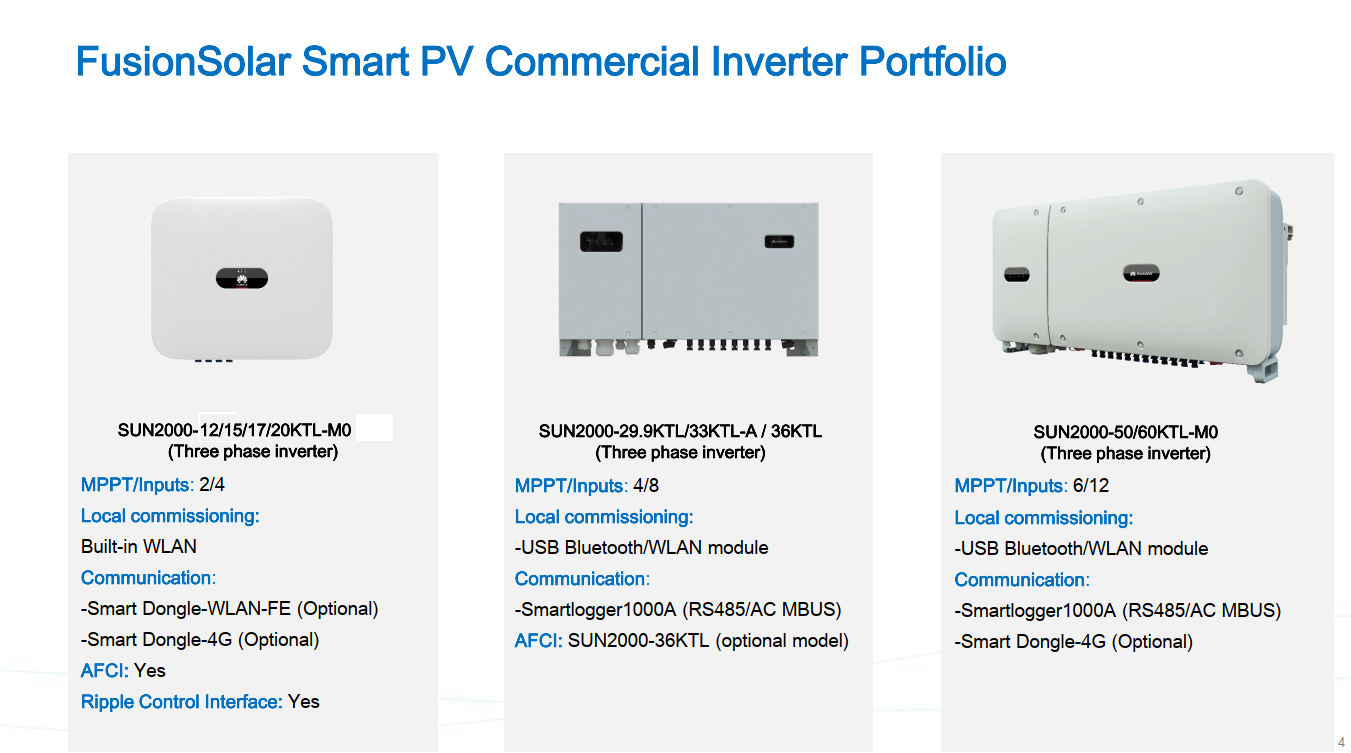

WLAN connection:

• yes (with exception)
  • - SUN2000L-2-5KTL: integrated

    - SUN2000-3-10KTL-M0: WLAN dongle inside the package

    - SUN2000-12-20KTL-M0: WLAN dongle must be purchase

    - SUN2000-33KTL-A/ 36KTL: smart logger 1000A needed

    - SUN2000-50/60KTL-M0: smart logger 1000A needed

  • - SUN2000-30/36/40KTL-M3: WLAN dongle must be purchase

  • - SUN2000-3-10KTL-M1: WLAN dongle inside the package

  •


• Local commissioning: Check note below,

  • Built-in WLAN means similar to Setapp, the installer can connect their phone with the inverter when they stand next to the inverter. WLAN dongle work like antenna.

SUN2000-33KTL-A : No option for a wifi dongle.

Smart Meter

• all meters always comes with CT inside the packaging. The important detail here is that those CT are not interconnectable and you can’t use third party CT with that meter (because those meters are rated on 40 mA second winding current and such CT are rare on market)

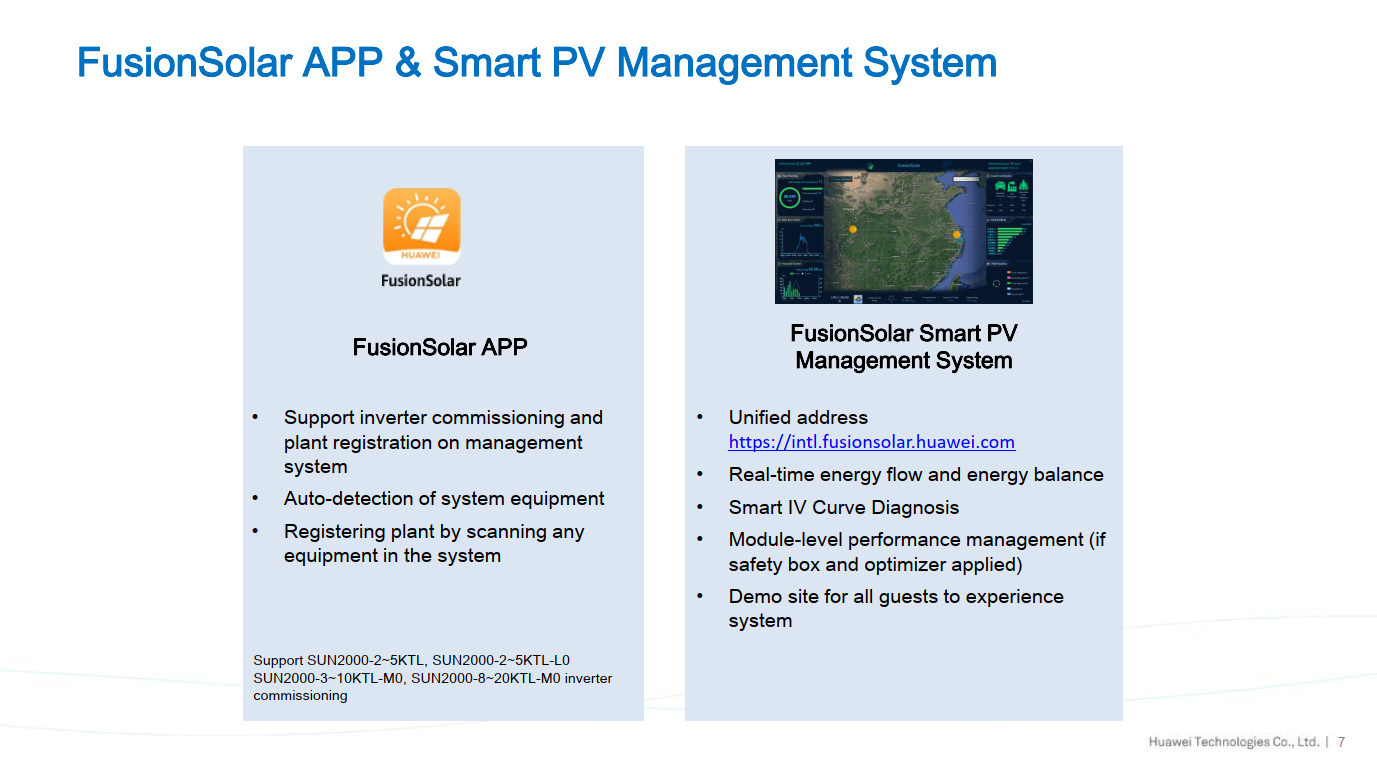

Extra fee for monitoring web portal:

• NO
• Check the note below

Note:

• Some inverter could be equipped with a 4G dongle for communication.

• Further information about connection configuration, compatible smart meters could be check here https://drive.google.com/open?id=1vmW4xHU_ZTfVJ9DOppvwbpgBIPqPuVmX

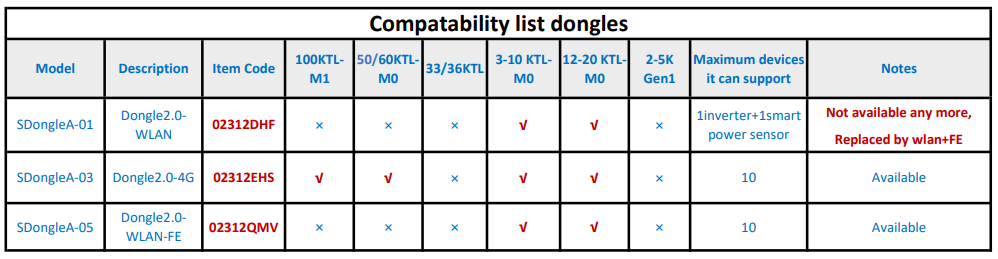

Summ Up sheet:

.
