Huawei battery guide

Applicable inverters:

• SUN2000-2-6KTL-L1
• SUN2000-3-10KTL-M1

Hybrid system components:

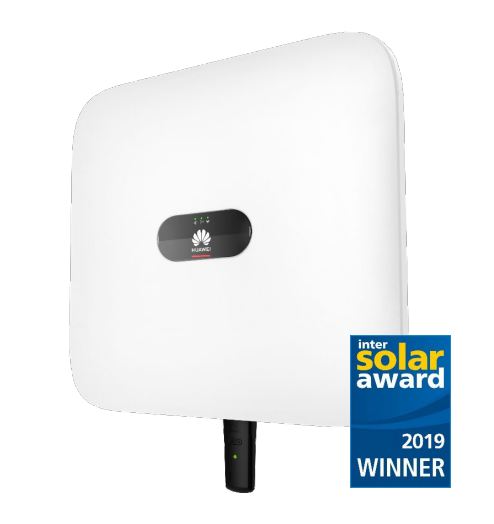

• SUN2000 Inverter

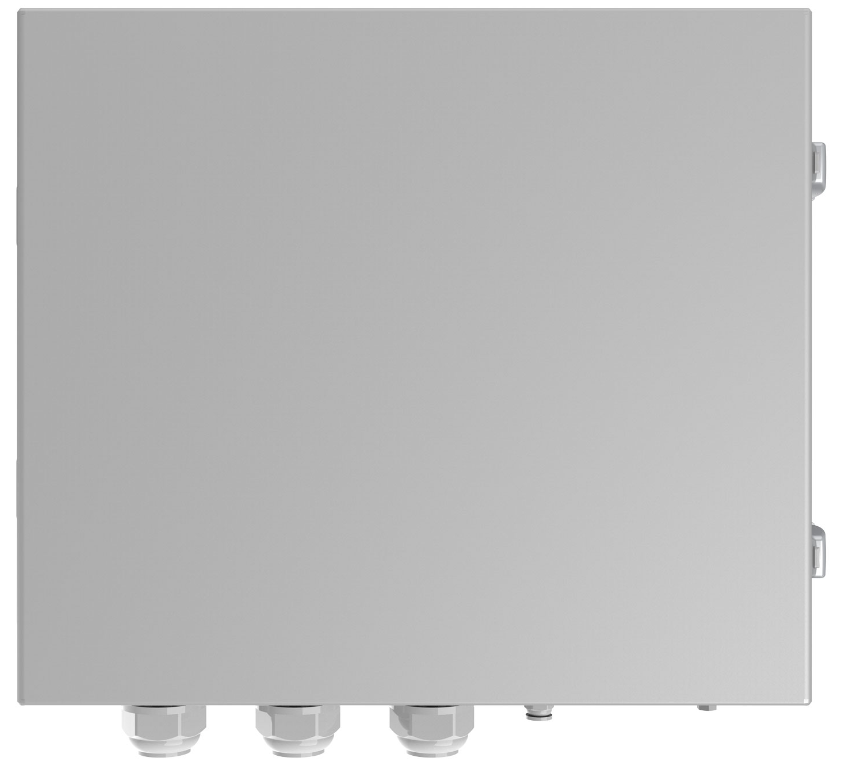

• Huawei Backup Box (optional)
  • 1 phase - Backup Box-B0
  • 3 phase - Backup Box-B1

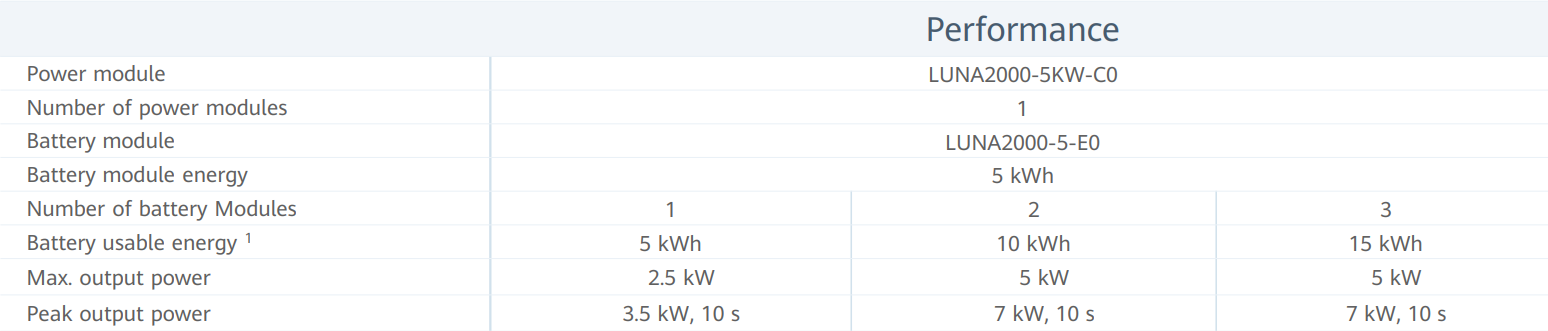

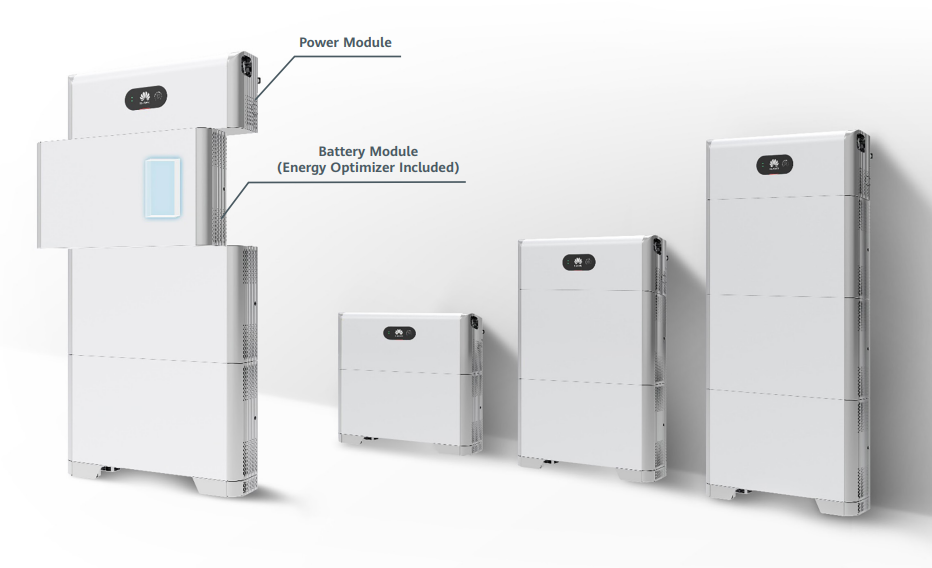

• Huawei Luna Power Module (BMS)
• Huawei Luna Battery Module (Up to 3 pc)
• Floor stand (Basic accessories to BMS)
• Smart meter
  • 1 phase - DDSU666-H

  • 3 phase - DTSU-666-HW

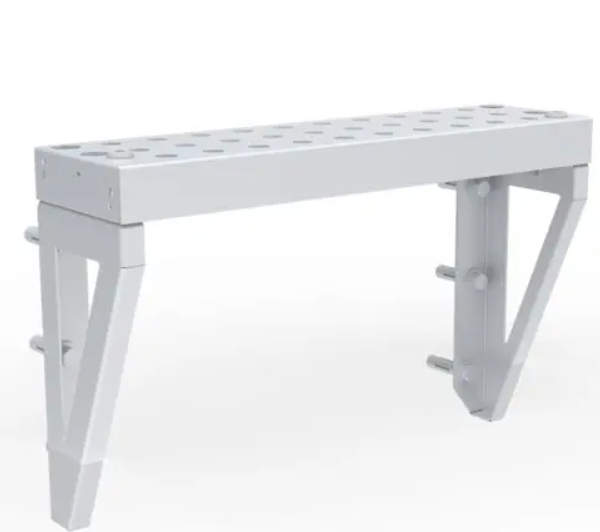

• Wall mount (optional)

• Cables
  • Some cables are included in the system:
    • Communication cables between BMS-BATTERY-BATTERY
    • Power cables between BMS-BATTERY-BATTERY
    • Communication cable between DTSU-INVERTER
  • Some cables are needed to create on our own:
    • Communication cables between INVERTER-BACKUP (R485 Twisted Pair)
    • Communication cables between INVERTER-BMS (R485 Shielded 2 x Twisted Pair)

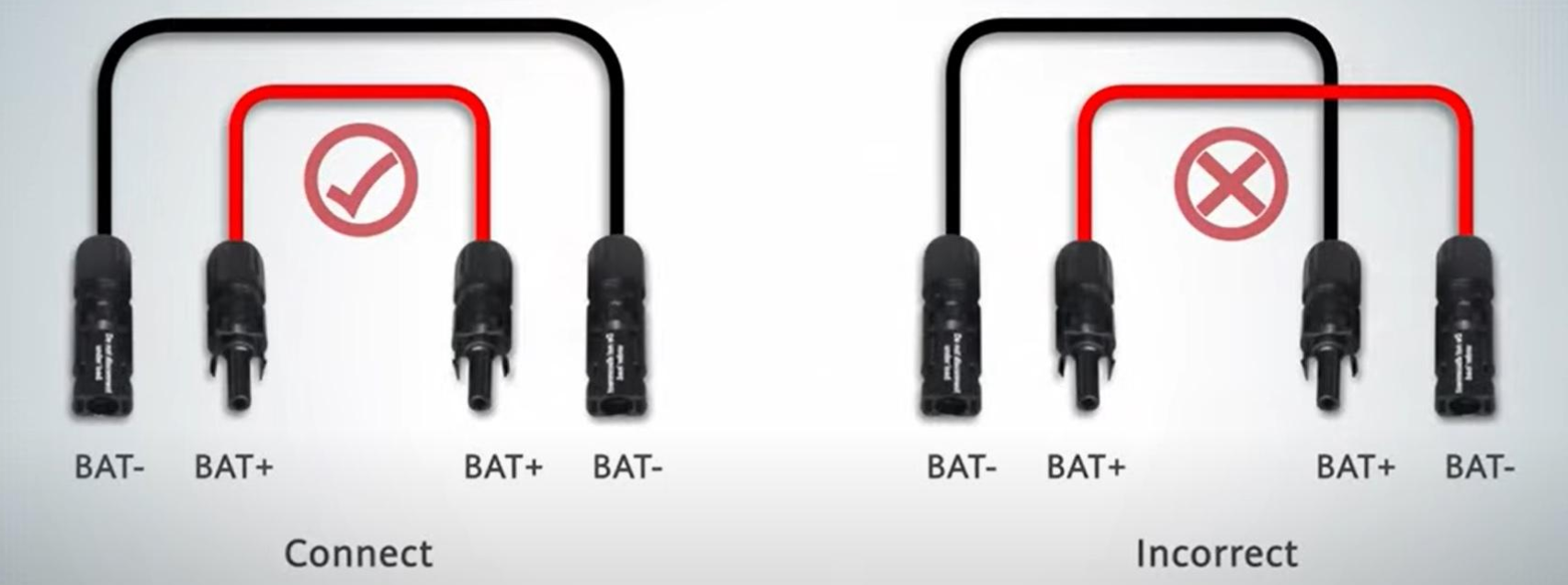

    • DC Power cables between INVERTER-BMS (1 pair of 6mm2 DC cable with MC4 connectors)

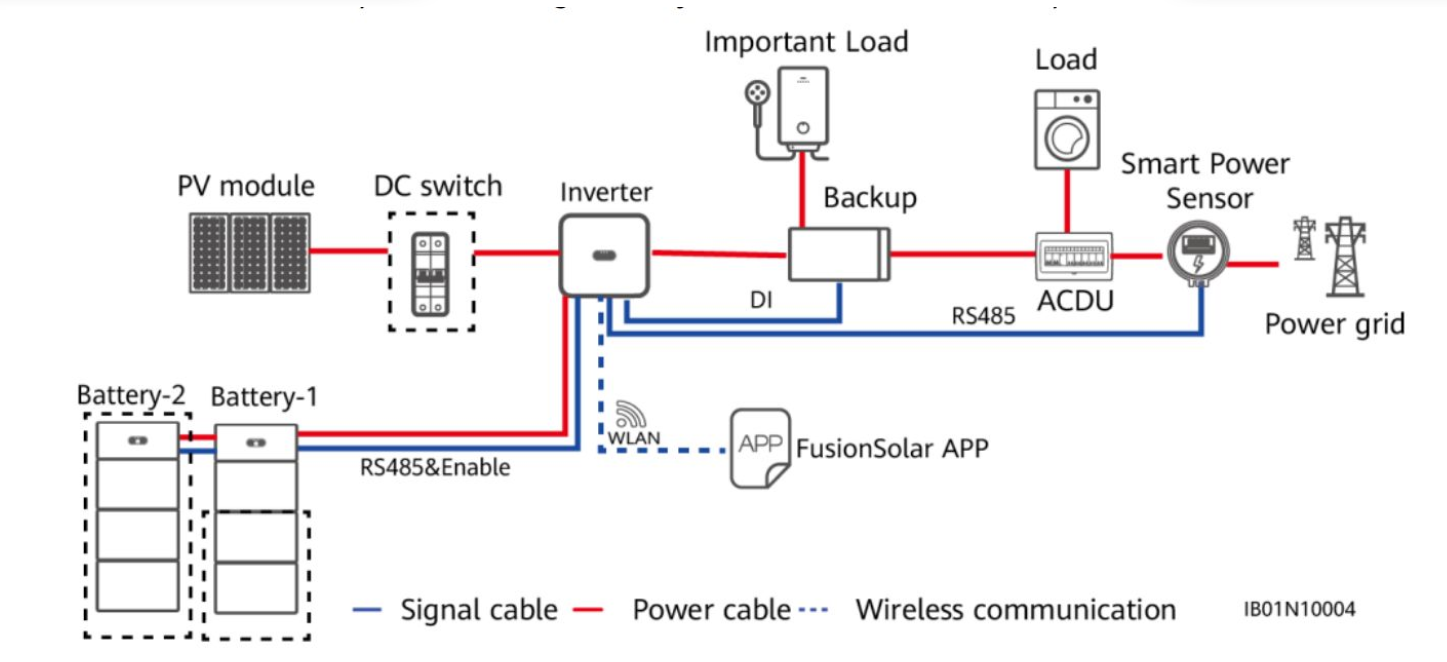

System schematic diagram:

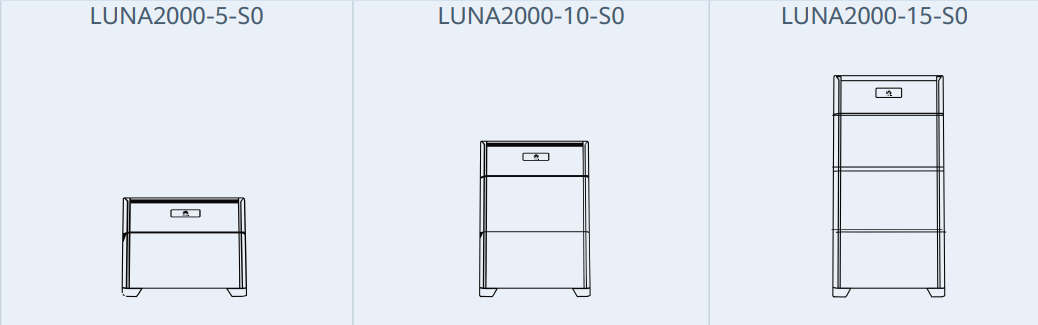

Battery layout options and requirements:
