Deye LV battery guide

Applicable inverters:

• SUN-5/6/8/10/12K-SG04LP3

Hybrid system components:

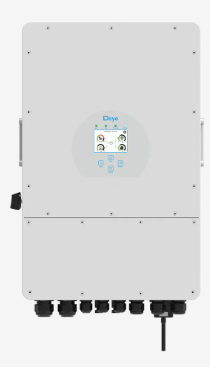

• SUN Inverter
  • CTs and Wifi dongle are included
  • Works only with Low Voltage batteries

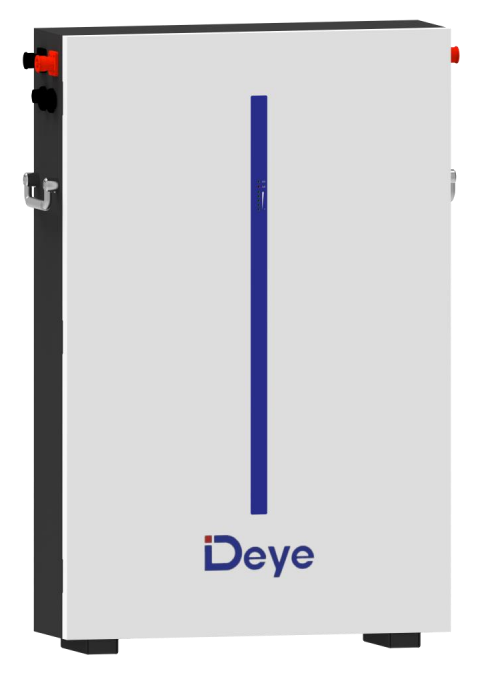

• Deye battery
  • AI-W5.1
    • AI-W5.1-PDU (10-year warranty) + AI-W5.1-Base (350-035)
    • AI-W5.1 batteries (350-011)

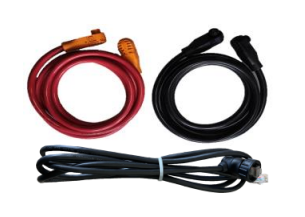

    • AI-W5.1-PCable (310-016)
    •

• RW-M6.1 (6,14 kWh)
  • Cables
    • For one battery, no additional equipment is necessary
    • Each additional battery requires 1 RW-M6.1-BCable (350-015)
  • Accessories
    • RW-M6.1-Hboard - battery fixing on the wall  (optional)
•

  • Pylontech battery
    • Battery  (In one system only 1 type of battery)

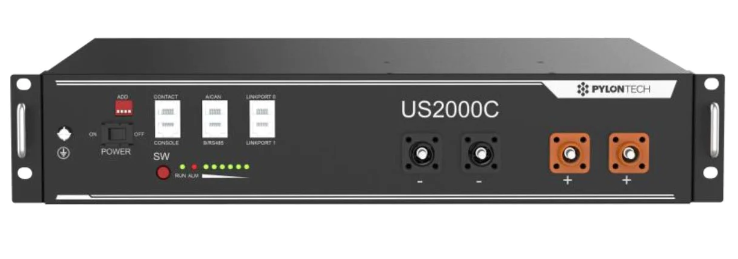

      • US2000C (2,4 kWh)

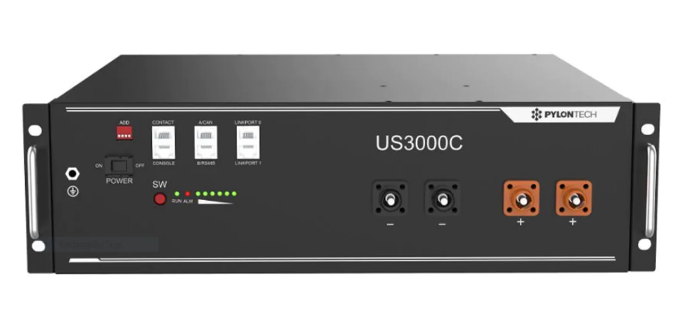

      • US3000C (3,6 kWh)

    • Cable set for battery-battery is included for the battery

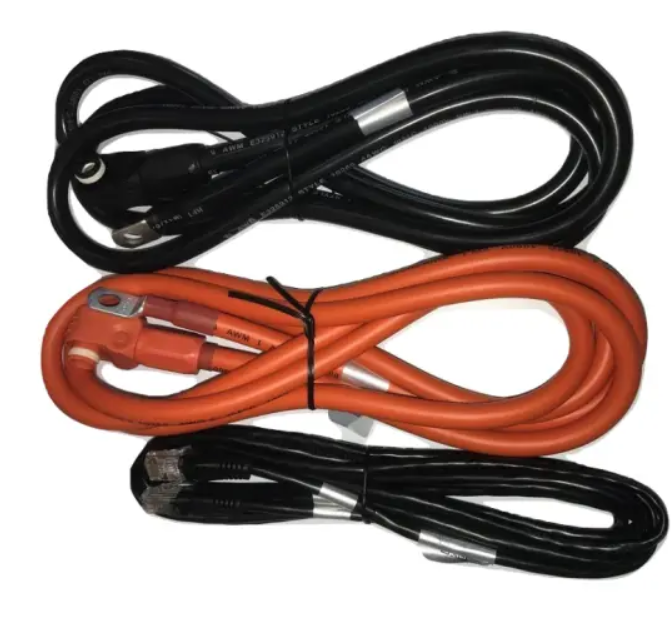

    • Cable set for Pylontech (Inverter-Battery)

      • DC power cable
      • COM cable

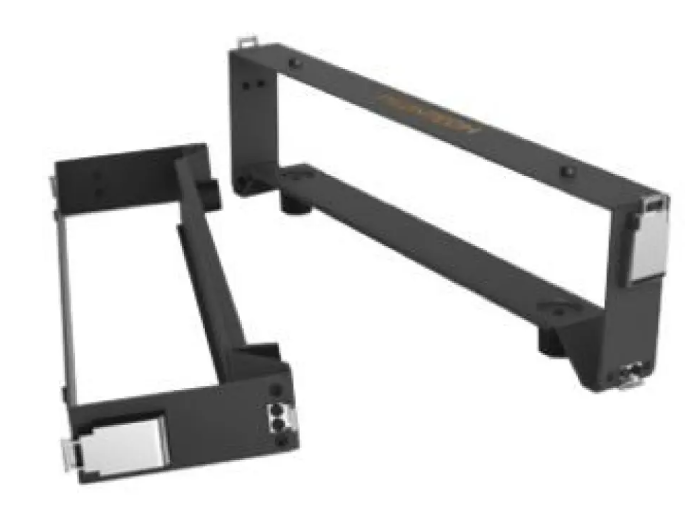

    • Rack
      • For US2000C - 260-009
      • For US3000C - 935-000
      • Package Contains two items
        • One for the front
        • One for the rear
    • Cabinet

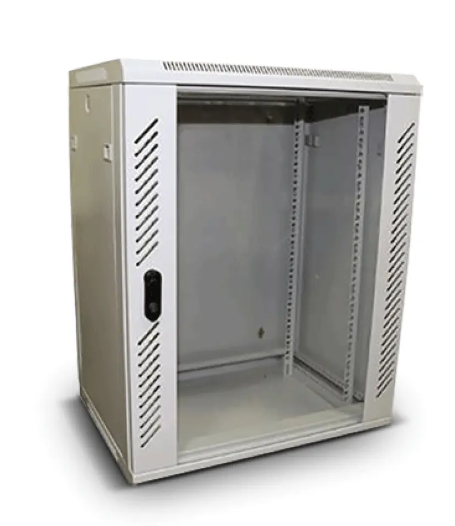

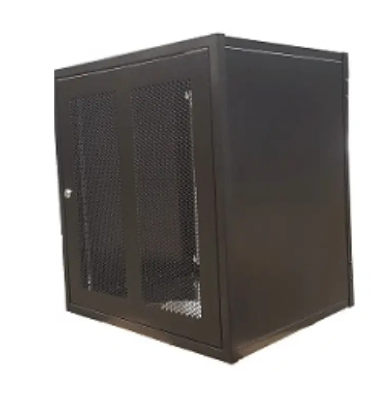

      • LITHIUM CABINET 12U
        • US2000C - MAX 6 PCS
        • US3000C - MAX 4 PCS

      • LITHIUM CABINET 18U
        • US2000C - MAX 9 PCS
        • US3000C - MAX 6 PCS



• Meter

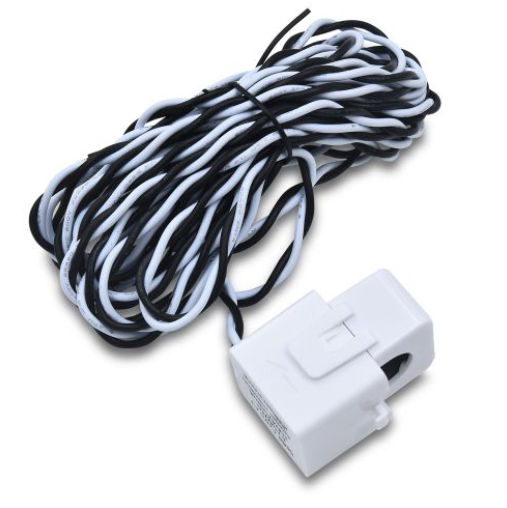

  • CTs (included for the inverter)

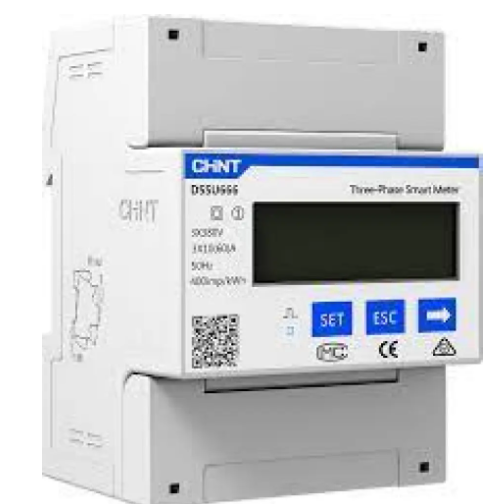

  • DTSU-666 Up to 80 A (IN-Line)

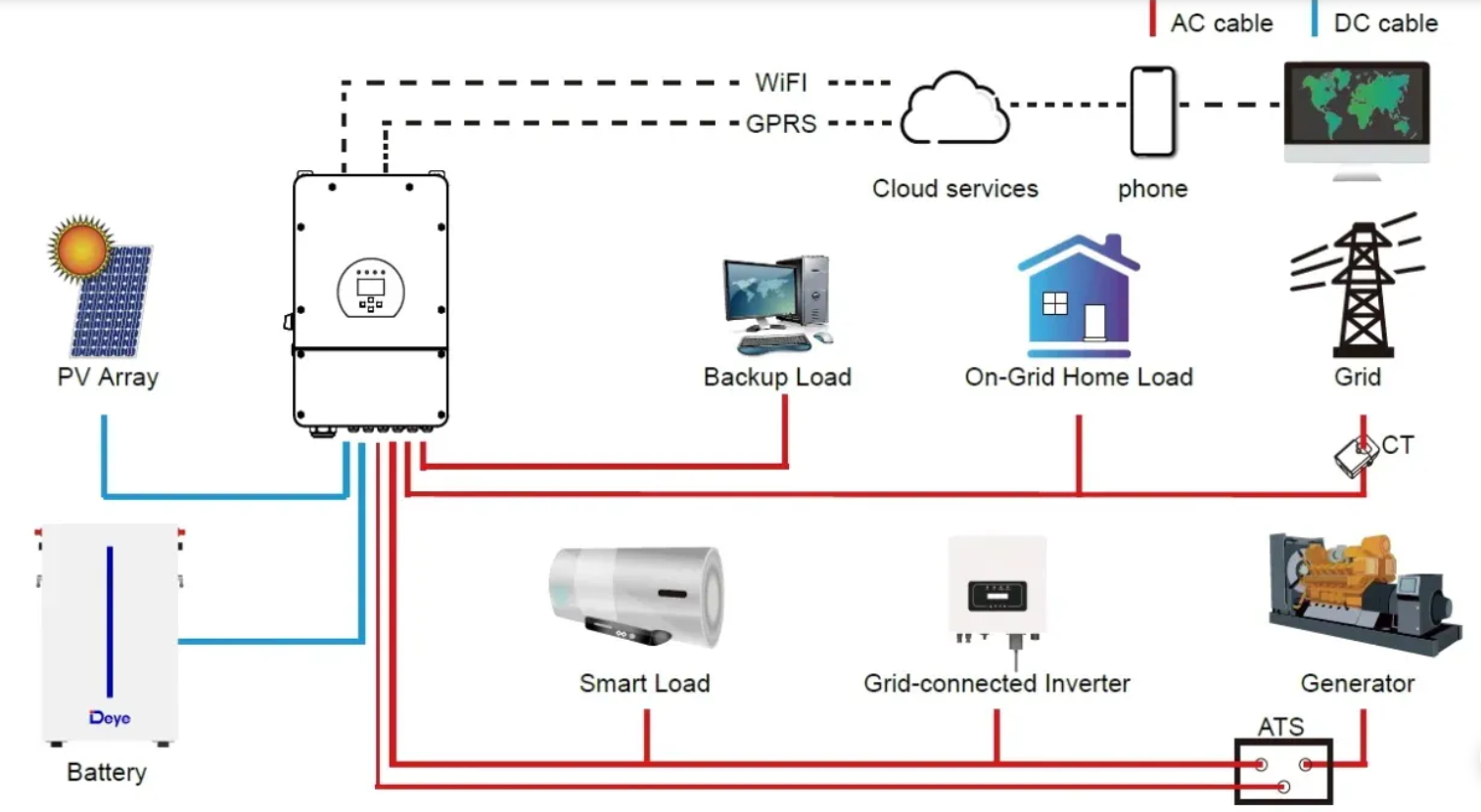

System schematic diagrams:

Battery layout options and requirements:

Related articles:
